Hikvision DS-K7P02 Exit & Emergency Push Button – Price in Bangladesh

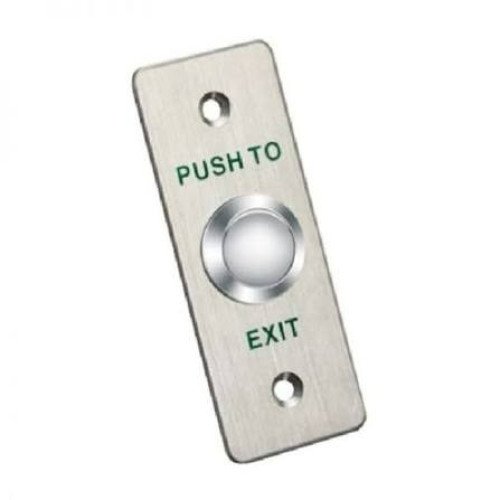

The Hikvision DS-K7P02 Exit & Emergency Push Button is a slim-profile exit button designed for professional access control, magnetic lock, electric strike, and door release systems. It features a sandblasted aluminum alloy panel with a durable metal push button, offering reliable performance and an elegant appearance for modern commercial and residential installations. Supporting NO/NC/COM dry contact output with a maximum rating of 36 VDC, 3A, it is compatible with most access control controllers and door locking systems.
Engineered for long-term reliability, the DS-K7P02 has successfully passed 500,000 press-cycle tests, making it suitable for high-traffic environments. Its narrow design fits perfectly on hollow door frames and embedded electrical boxes, making it an ideal solution for offices, banks, hospitals, schools, factories, hotels, and commercial buildings.
Key Features
- Genuine Hikvision Exit & Emergency Push Button
- Slim Aluminum Alloy Panel with Sandblasted Finish
- Durable Metal Push Button
- NO / NC / COM Dry Contact Output
- Maximum Rating: 3A @ 36 VDC
- Passed 500,000 Press-Cycle Test
- Narrow Design for Door Frame Installation
- Suitable for Hollow Door Frames
- Supports Embedded Electrical Box Installation
- Corrosion-Resistant Construction
- Easy Installation
- Compatible with Most Access Control Systems
Technical Specifications
| Specification | Details |
|---|
| Product Model | Hikvision DS-K7P02 |
| Product Type | Exit & Emergency Push Button |
| Panel Material | Aluminum Alloy with Sandblast Finish |
| Button Material | Metal |
| Output Contact | NO / NC / COM |
| Current Rating | 3A @ 36 VDC Max |
| Power Supply | None Required (Dry Contact) |
| Mechanical Life | 500,000 Operations |
| Installation | Hollow Door Frame / Embedded Electrical Box |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 0–95% RH |
| Dimensions | 90 × 35 × 28.9 mm |
| Weight | 0.20 kg |
Applications
- Access Control Systems
- Magnetic Lock Systems
- Electric Strike Locks
- Office Buildings
- Banks
- Hospitals
- Schools & Universities
- Hotels
- Factories & Warehouses
- Commercial Buildings
Why Choose Hikvision DS-K7P02?
- Premium Aluminum Alloy Construction
- Compact Slim Design
- Heavy-Duty Metal Push Button
- 500,000 Operation Durability
- Universal NO/NC/COM Output
- Easy Integration with Access Control Systems
- Corrosion-Resistant Finish
- Ideal for Narrow Door Frames
- Stable & Reliable Performance
Why Buy from Default System BD?
- 100% Genuine Hikvision Products
- Official Warranty Support
- Best Price in Bangladesh
- Nationwide Delivery
- Corporate & Government Supply
- Professional Technical Support
- Trusted After-Sales Service
FAQs
1. What is the Hikvision DS-K7P02 used for?
The DS-K7P02 is an exit and emergency push button used to release electromagnetic locks, electric strikes, and other access control door systems.
2. What type of output does the DS-K7P02 provide?
It provides NO (Normally Open), NC (Normally Closed), and COM dry contact outputs for compatibility with most access control systems.
3. Does the DS-K7P02 require an external power supply?
No. It functions as a dry contact exit switch and does not require its own power supply.
4. How durable is the Hikvision DS-K7P02?
The push button has passed 500,000 mechanical operation tests, making it suitable for frequent daily use.
5. What is the latest Hikvision DS-K7P02 Price in Bangladesh?
Please contact Default System BD for the latest price, official warranty, stock availability, and installation support.
