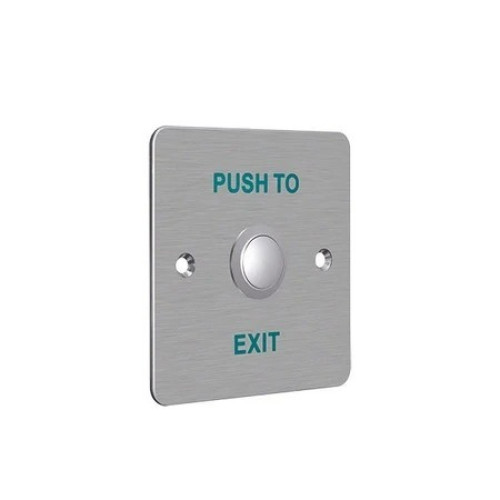

Hikvision DS-K7P01 Exit & Emergency Push Button – Price in Bangladesh
The Hikvision DS-K7P01 Exit & Emergency Push Button is a professional-grade exit button designed for use with access control systems, electromagnetic locks, electric strikes, and door access solutions. Featuring a durable aluminum alloy panel with a metal push button, it provides reliable operation for offices, commercial buildings, banks, hospitals, schools, factories, and other secure facilities. The button supports NO/NC/COM contact output and is rated for up to 36 VDC, 3A, making it compatible with a wide range of access control systems.
Built to withstand frequent daily use, the DS-K7P01 has successfully passed 500,000 press-cycle tests, ensuring long-lasting performance. Its sandblasted aluminum finish offers excellent durability and corrosion resistance, while the standard 86 × 86 mm wall-mount design makes installation simple for hollow door frames and embedded electrical boxes. It is an ideal choice for secure exit control in both commercial and industrial environments.
Key Features
- Genuine Hikvision Exit & Emergency Push Button
- Durable Aluminum Alloy Panel
- Metal Push Button Design
- NO / NC / COM Contact Output
- Supports Up to 36 VDC, 3A
- Passed 500,000 Press-Cycle Test
- Sandblasted Corrosion-Resistant Surface
- Fast & Reliable Exit Control
- Standard 86 × 86 mm Wall Mount Design
- Compatible with Access Control Systems
- Suitable for Electric Locks & Magnetic Locks
- Easy Installation
Technical Specifications
| Specification | Details |
|---|
| Product Model | Hikvision DS-K7P01 |
| Product Type | Exit & Emergency Push Button |
| Panel Material | Aluminum Alloy |
| Button Material | Metal |
| Output Contact | NO / NC / COM |
| Current Rating | 3A @ 36 VDC Max |
| Power Supply | None Required (Dry Contact) |
| Mechanical Life | 500,000 Operations |
| Installation | Hollow Door Frame / Embedded Electrical Box |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 0–95% RH |
| Dimensions | 86 × 86 × 28.9 mm |
| Weight | 0.25 kg |
Applications
- Office Access Control Systems
- Magnetic Lock Systems
- Electric Strike Lock Systems
- Commercial Buildings
- Banks & Financial Institutions
- Hospitals & Clinics
- Schools & Universities
- Factories & Warehouses
- Government Offices
- Residential Access Control
Why Choose Hikvision DS-K7P01?
- Premium Aluminum Alloy Construction
- Heavy-Duty Metal Push Button
- 500,000 Press-Cycle Durability
- Universal NO/NC/COM Output
- Easy Integration with Access Control Systems
- Reliable & Stable Performance
- Corrosion-Resistant Design
- Ideal for High-Traffic Installations
Why Buy from Default System BD?
- 100% Genuine Hikvision Products
- Official Warranty Support
- Best Price in Bangladesh
- Nationwide Delivery
- Corporate & Government Supply
- Professional Technical Support
- Trusted After-Sales Service
FAQs
1. What is the Hikvision DS-K7P01 used for?
The DS-K7P01 is an exit and emergency push button designed for controlling magnetic locks, electric strikes, and access control systems.
2. What type of output does the DS-K7P01 provide?
It supports NO (Normally Open), NC (Normally Closed), and COM dry contact outputs for compatibility with most access control systems.
3. Does the DS-K7P01 require a power supply?
No. It operates as a dry contact switch and does not require a separate power supply.
4. How durable is the Hikvision DS-K7P01?
The button has passed 500,000 operation tests, making it suitable for long-term use in high-traffic environments.
5. What is the latest Hikvision DS-K7P01 Price in Bangladesh?
Please contact Default System BD for the latest price, stock availability, and official warranty information.
